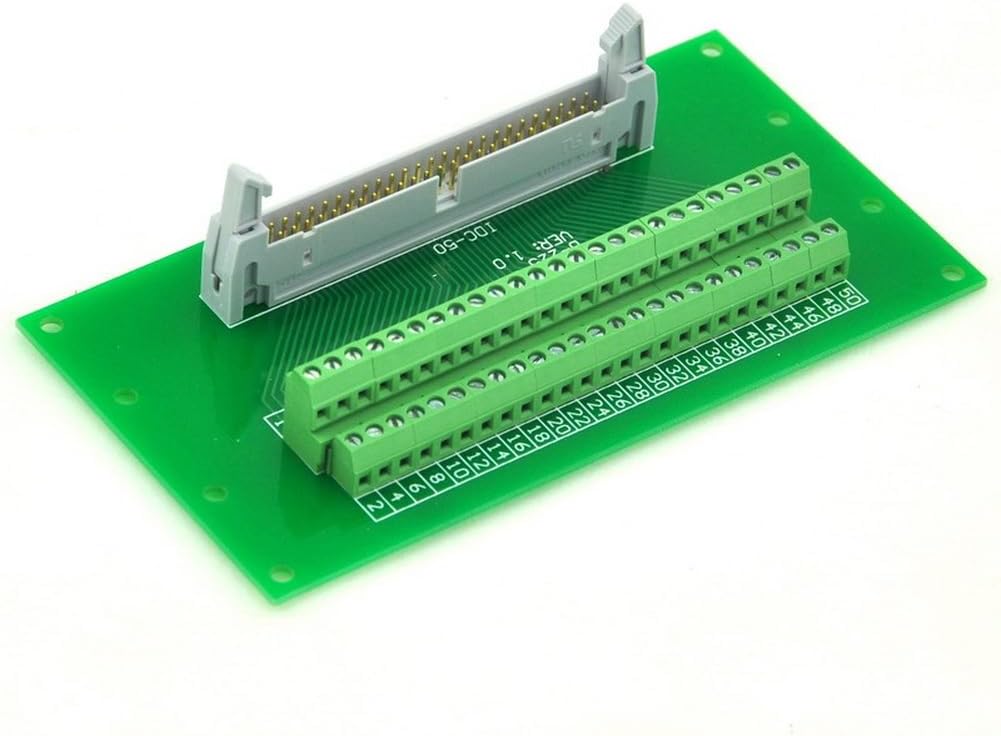

Flat Ribbon Cable 0.1" FRC Connector Breakout Board Module (IDC50 2x25Pin)
Product details
| Management number | 218170911 | Release Date | 2026/05/03 | List Price | US$9.60 | Model Number | 218170911 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
IDC Male header connector, pin pitch 0.1" / 2.54mm. Terminal block: Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass. Rated voltage: 60V. Rated current: 1A / per pin. Operating temperature: -20 to 50 Celsius. FR-4 fiber glass PCB, dual copper layers.Datasheet: https://images-na.ssl-images-amazon.com/images/I/A1UVn9hNcBL.pdf
- IDC Male header connector, pin pitch 0.1" / 2.54mm.
- Terminal block: Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
- Rated voltage: 60V. Rated current: 1A / per pin. Operating temperature: -20 to 50 Celsius.
- FR-4 fiber glass PCB, dual copper layers.
| Color | Green |
|---|---|
| Gauge | 16.0 |
| Model | 2f4b116c-fa7e-419a-a8b6-0a35b8288a7e |
| Pitch | 2.54 Millimeters |
| Voltage | 60 Volts |
| Brand Name | Electronics-Salon |
| Part Number | MD-D225-1 |
| Manufacturer | Electronics-Salon |
| Material Type | Brass |
| Mounting Type | PCB Mount |
| Connector Type | Screw |
| Current Rating | 1 Amps |
| Number Of Poles | 50 |
| Number Of Contacts | 50 |
| Number of Positions | 50 |
| Upper Temperature Rating | 50 Degrees Celsius |
